SelectCheckbox
Display all configured options for selecting one or more values
Specs
Version
1.0.0 (updated on 2026-08-22)
Developer
Labii Inc.
Type
Column
Support Configuration
Yes
Support Readonly view
Yes
Support Edit view
Yes
Support Form view
Yes
Support Default value
Yes
Support Import
Yes
Allow multiple
Yes
Overview
The Labii SelectCheckbox widget allows users to select one or more values from a custom list of options. It provides the same configuration, data handling, and functionality as the MultiSelect widget, but displays all available choices directly as checkboxes in the Edit and Form views instead of placing them inside a dropdown. This layout makes every option visible and allows users to compare and update multiple selections quickly.
Use case
Use this widget to select the regulations and quality standards that apply to a laboratory document.
Use this widget to assign multiple research categories when users need to review every available choice at a glance.
Configuration
To enable the widget's functionality, provide a list of options. Each option can include the following fields:
Dropdown option - The value displayed to users.
Color - The color used to highlight the option.
Example
Views
See the interface of the widget in the following views.
Readonly view
The Readonly view displays the selected values in the same way as the MultiSelect widget.

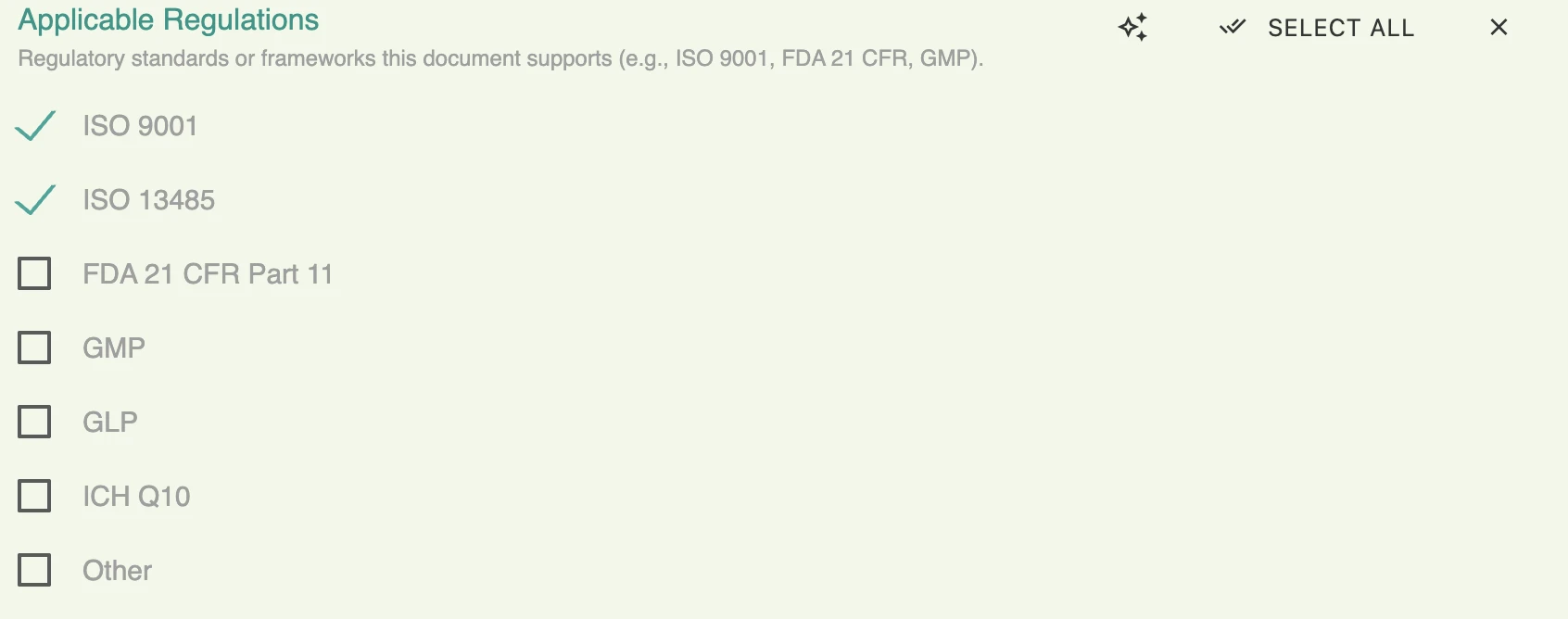

Edit view
The Edit view displays all configured options as a visible checkbox list. Select or clear individual checkboxes to modify the column value, or use SELECT ALL to select every option.
Form view
The Form view is the field integrated into the add form for collecting values when creating a new record.
The Form view is the same as the Edit view.
Data
Each widget in Labii stores data in a unique manner; refer below to understand how data from this widget is stored.
Data format
The selected options are stored as JSON data with sid and name keys.
Default value
The Default Value field within the column allows you to specify the default value when a record is created.
Enter selected option values separated by commas.
ISO 9001, ISO 13485
Import value
The Import Value is the value you need to include in your Excel table for it to be imported into Labii.
Enter selected option values separated by commas.
ISO 9001, ISO 13485
