ForeignKey
Establishes a link to another record, enabling a direct association between related data sets.
Specs
| Label | Value |
|---|---|
Version | 1.0.0 (updated on 2021-09-14) |
Developer | Labii Inc. |
Type | Column |
Support Configuration | Yes |
Support Readonly view | Yes |
Support Edit view | Yes |
Support Form view | Yes |
Support Default value | Yes |
Support Import | Yes |
Allow multiple | Yes |
Overview
The ForeignKey widget in Labii establishes a link to another record, enabling a direct association between related data sets. This widget facilitates the creation of a connection to a single additional record, offering a seamless and clickable link to access the linked data. Through this functionality, users can establish clear relationships between different sets of information, fostering efficient navigation and exploration within the Labii platform.
Use case
Use this widget to define the storage of samples.
Use this widget to define the account of contacts.
Configuration
The widget will function without additional setup. However, the configuration options empower you to impose additional restrictions on the tables to which the linked data can be associated. Leave it empty to include all tables.
Tables - Select one or more tables to link.
Examples:
Views
See the interface of the widget in the following views.

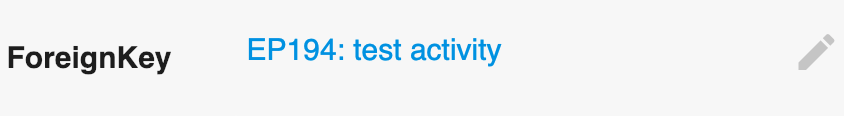

Readonly view
Readonly view display the values of the column.

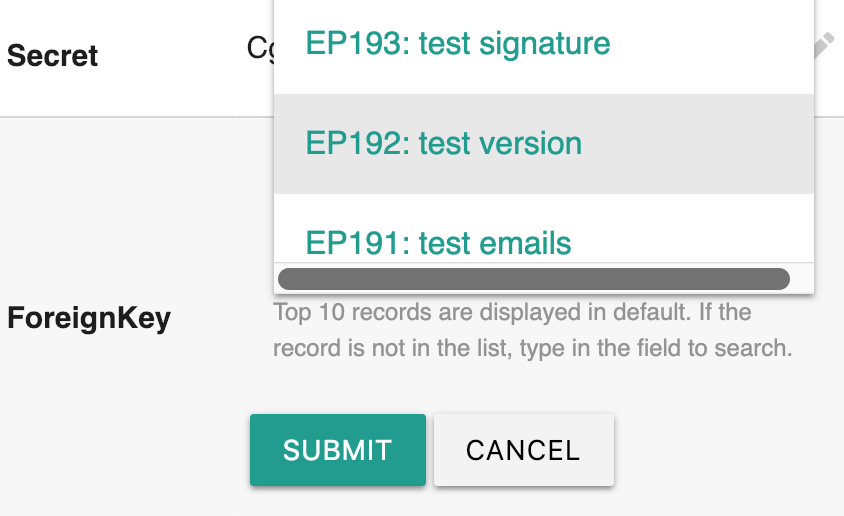

Edit view
The Edit view is the interface that allows you to modify the value.
Form view
The Form view is the field integrated into the add form for collecting values when creating a new record.
The Form view is same as the Edit view.
Data
Each widget in Labii stores data in a unique manner; refer below to understand how data from this widget is stored.
Data format
JSON object with the keys of sid and name.
Default value
The Default Value field within the column allows you to specify the default value when a record is created.
Default value shall be the name or uid of a record.
Import value
The Import Value is the value you need to include in your Excel table for it to be imported into Labii.
Import value shall be the name or uid of a record.
