Barcode

Overview
You can manage barcodes and QR codes with these widgets.
Barcode
Display a barcode using this widget. If no value is provided, the UID will be used.

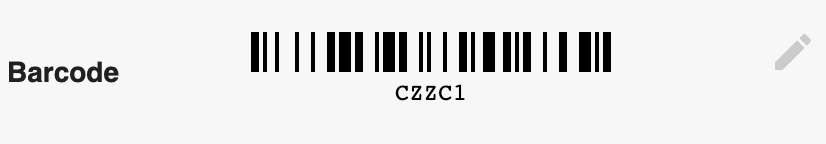

Readonly view:
​
​

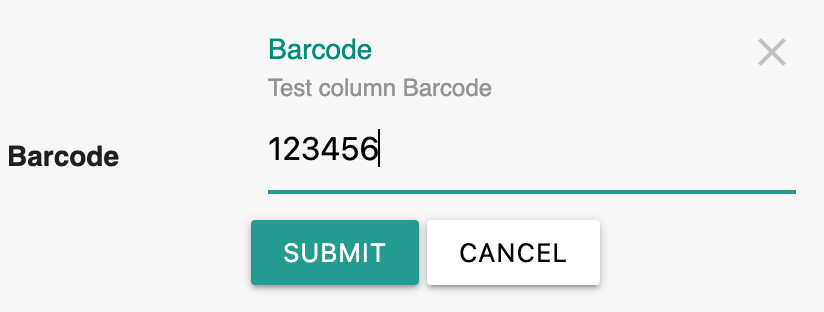

Edit view:
​
​
Form view:
Same as the edit view.

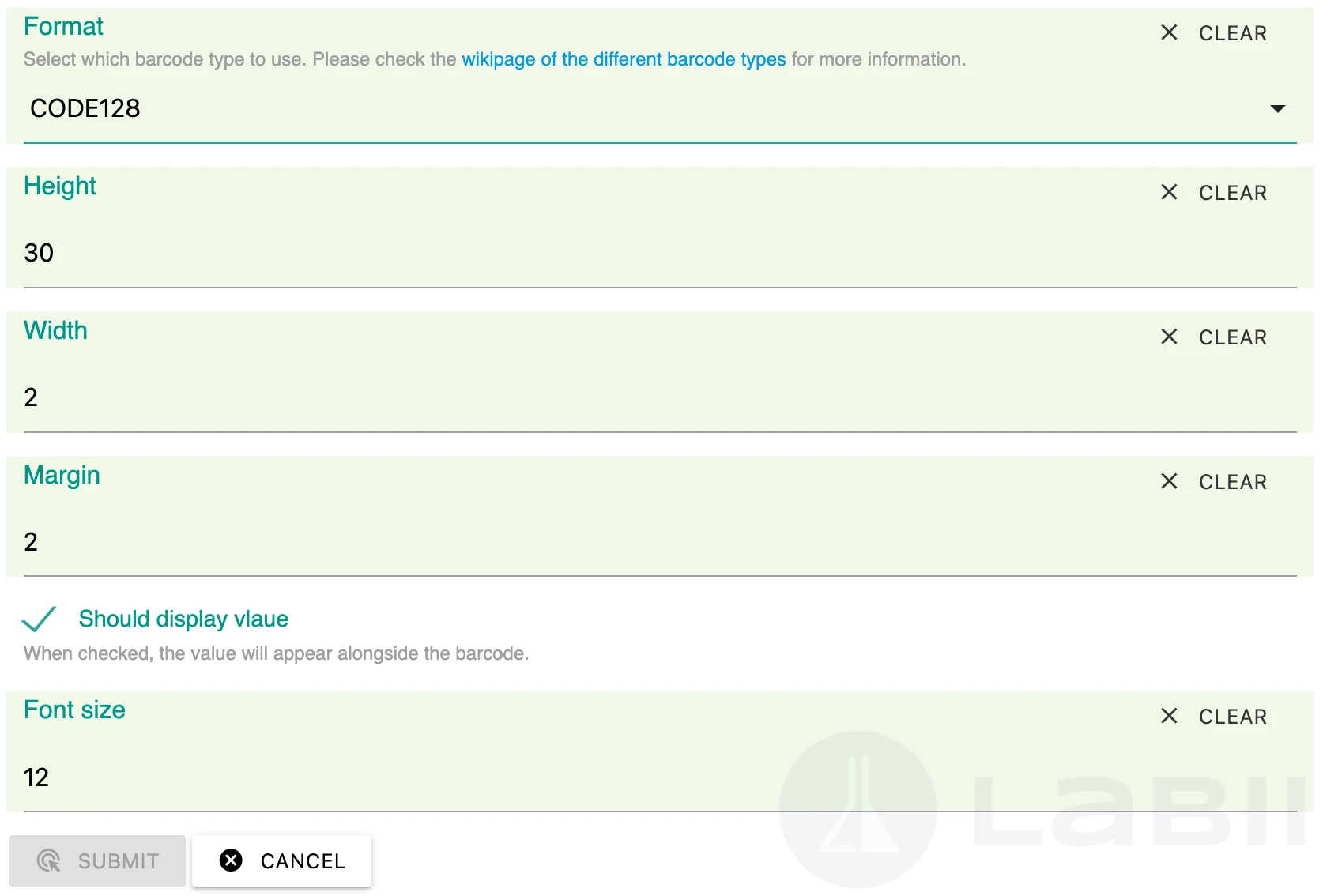

Configuration:
{
    "format": "CODE128", // (optional), default to CODE128, check https://github.com/lindell/JsBarcode/wiki#barcodes for all options
    "height": 30, // (optional), default to 30
    "width": 2, // (optional), default to 2
    "margin": 2, // (optional), default to 2
    "displayValue": true, // (optional), default to true. Set to false to hide value
    "fontSize": 12, // (optional), default to 12
}
Import value:
Any barcode string. For example: 35477855
QR Code
Display a QR code using this widget. If no value is provided, the UID will be used.

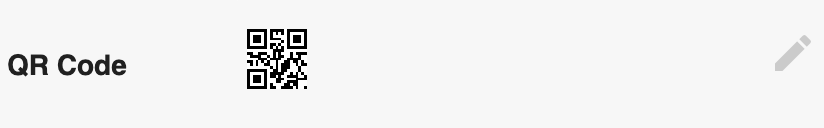

Readonly view:
​
​

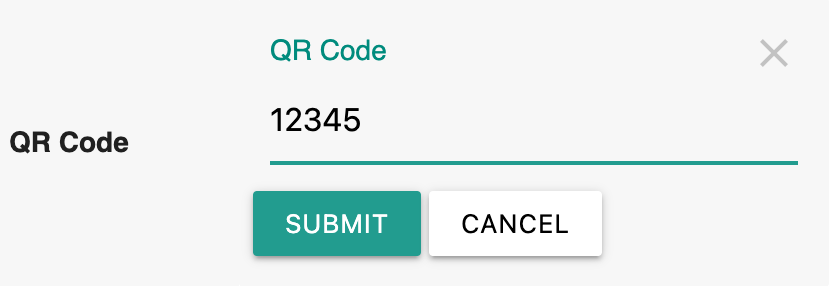

Edit view:
​
​
Form view:
Same as the edit view.

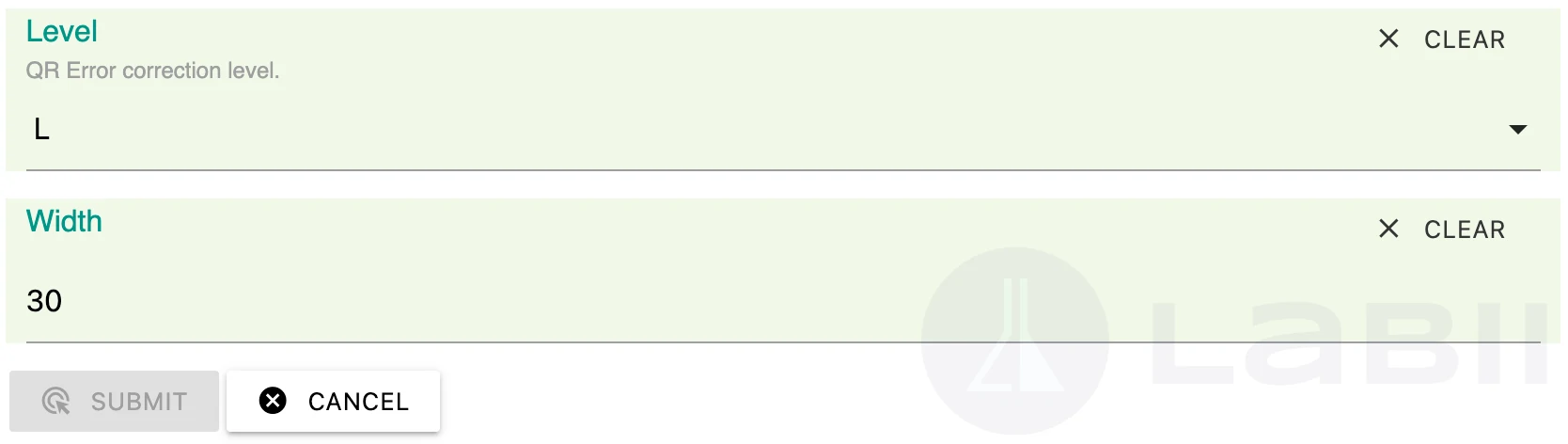

Configuration:
{
    "width": 30, // (optional), default to 30
    "level": "L", // (optional), default to L. QR Error correction level. Choice of L, M, Q, H
}
Import value:
Any QR code string. For example: 3478987
